In the era of high-speed transmission and intelligent interconnection, connectors, though small, carry the key mission of stable signals and efficient energy. How can we ensure that each connector remains reliable under harsh environments? BEISIT connectors take “scientific testing” as the cornerstone, and use “micron-level precision” and “full-scene verification” to write a hard-core footnote for quality.

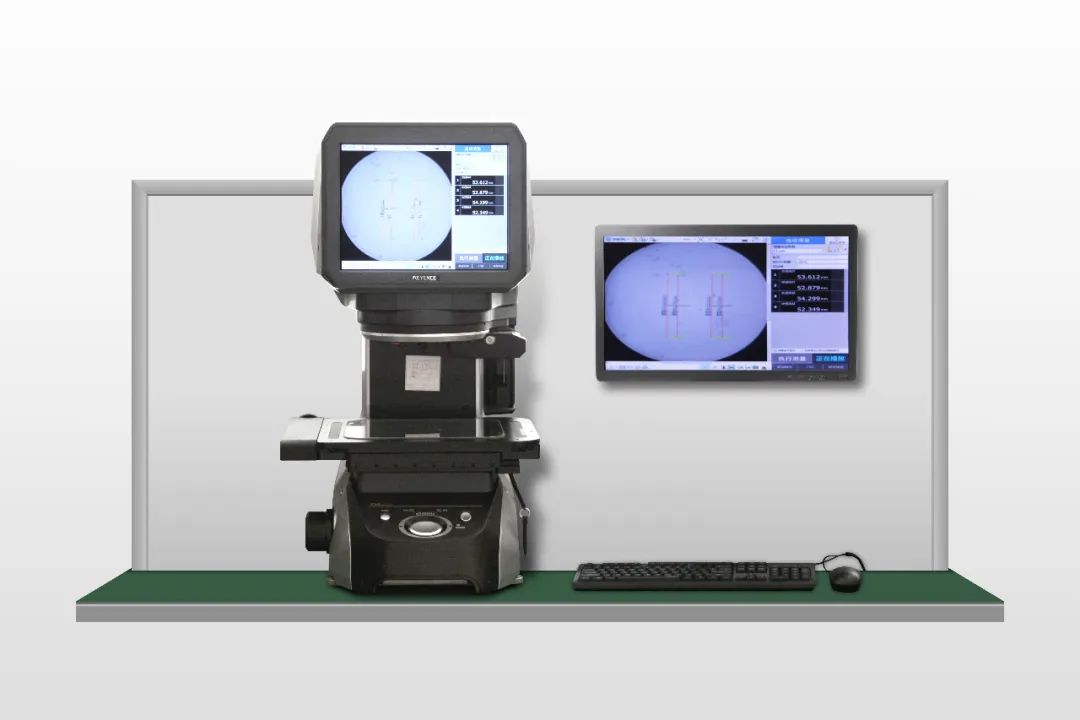

Micron-sized “eyes of fire”: image size measurement instruments
0.1μm precision image size measuring instrument, through the image algorithm to automatically identify the edge, contour, calculate the target size, to ensure that each contact accurate bite.

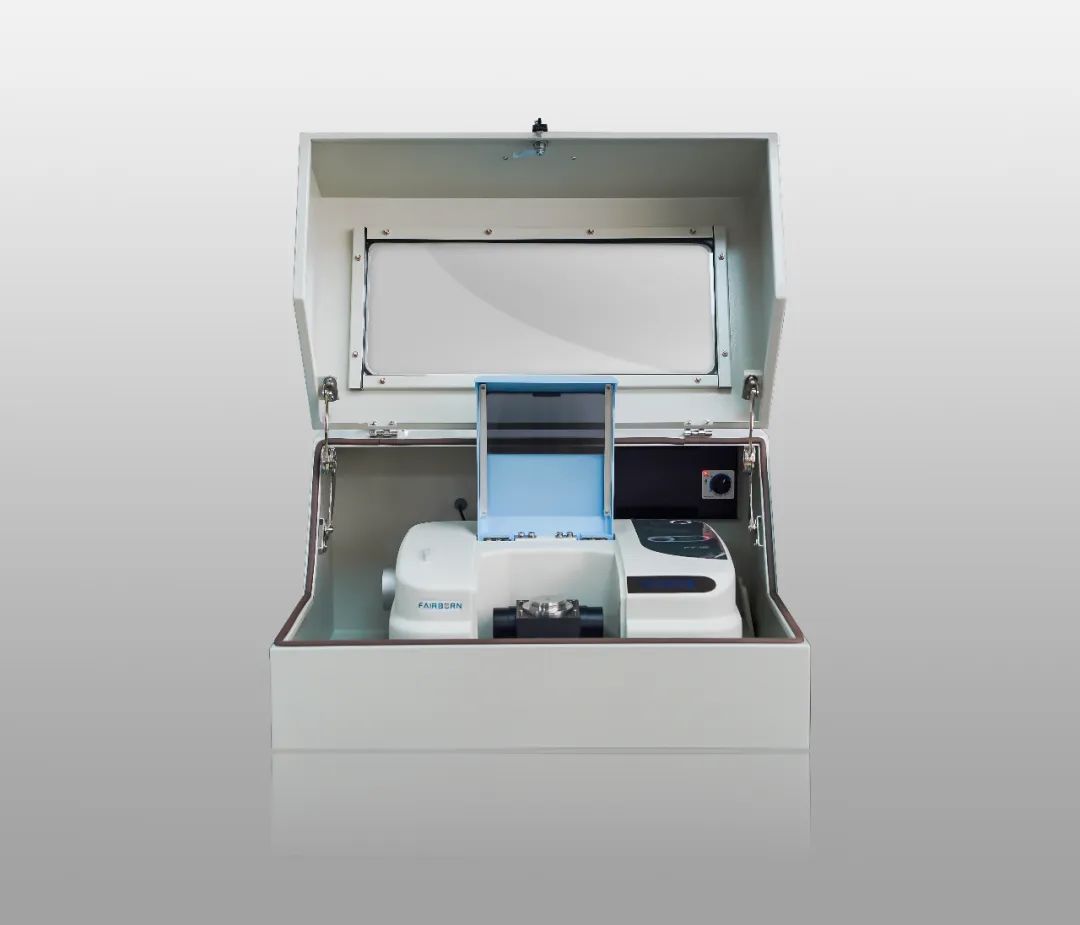

Molecular “Composition Detective”: Fourier Infrared Spectroscopy
The FTIR spectrometer locks the material composition in 3 seconds and matches 3 million standard spectral libraries, so that the illegal plasticizers and inferior polymers are instantly visible!

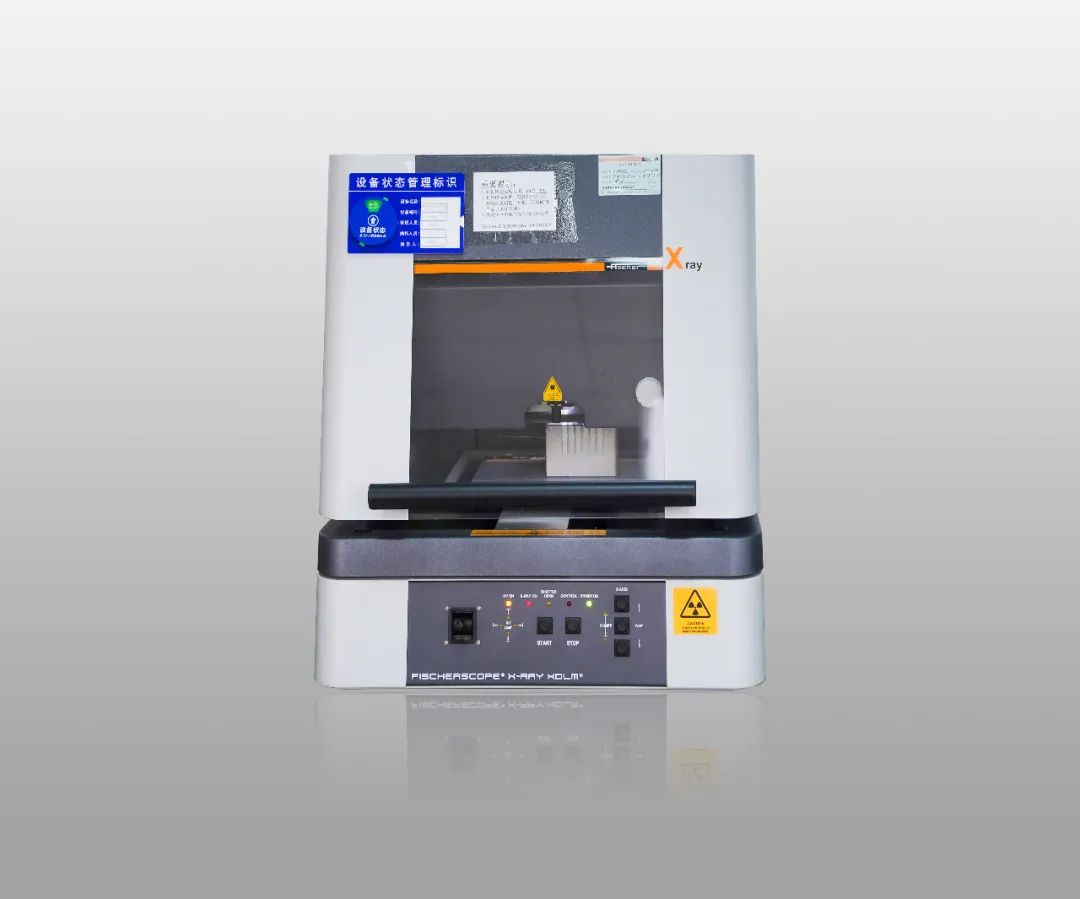

Plating “X-ray”: X-ray Fluorescence Plating Thickness Gauge
X-ray fluorescence meter penetrates 20μm plating layer, 0.001μm precision +16 elements analysis, gold-nickel-tin-zinc layer checking, to eliminate the hidden danger of false labeling.

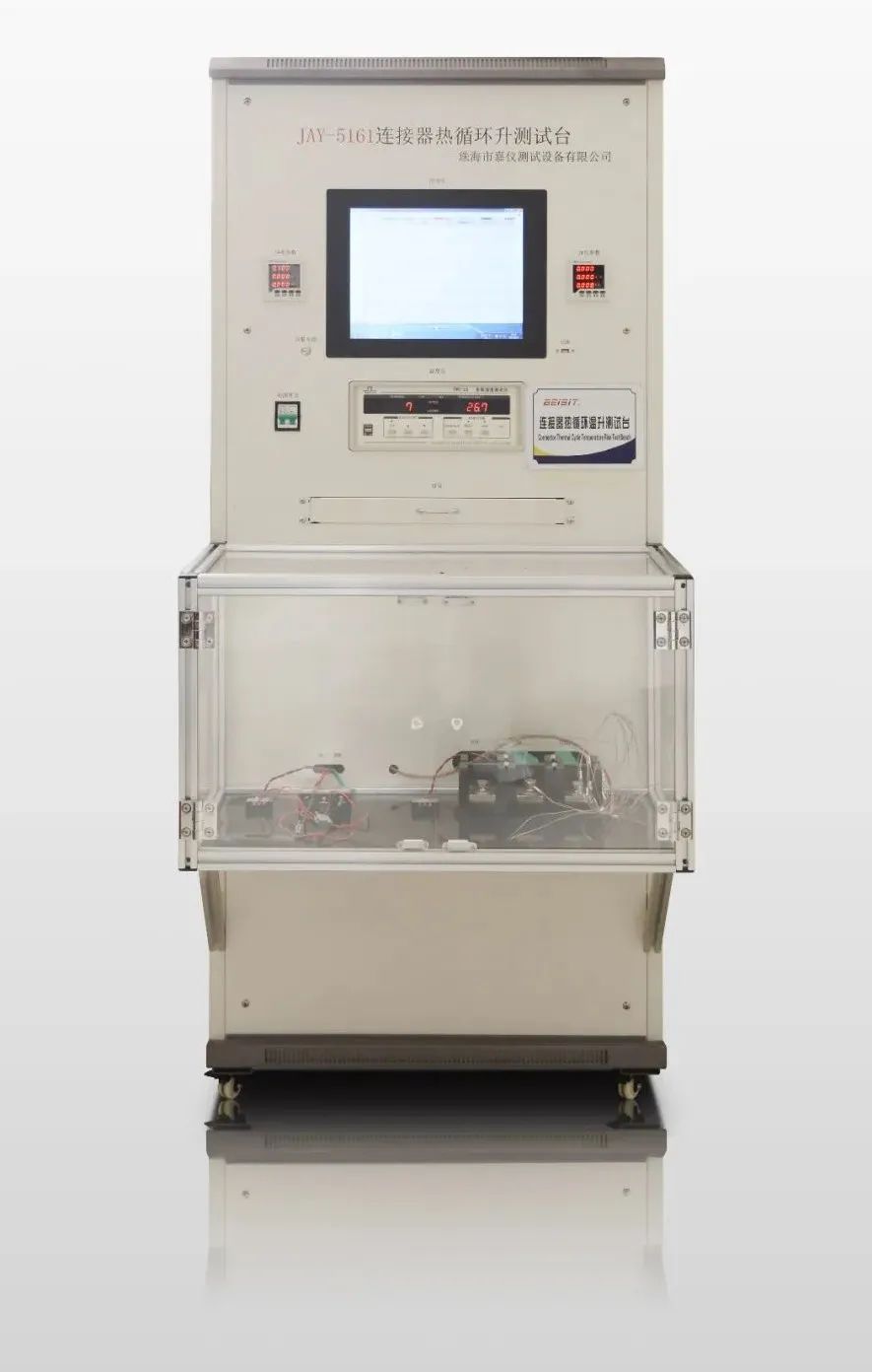

“Current Storm": Connector Thermal Cycling Temperature Rise Test Bench
Intelligent temperature rise test bench temperature fluctuation ≤ ± 0.5 ℃, current control accuracy ± 1%. Provide stable high current (0-700A) loading capacity, simulate the actual working current, test the temperature rise under different working conditions.

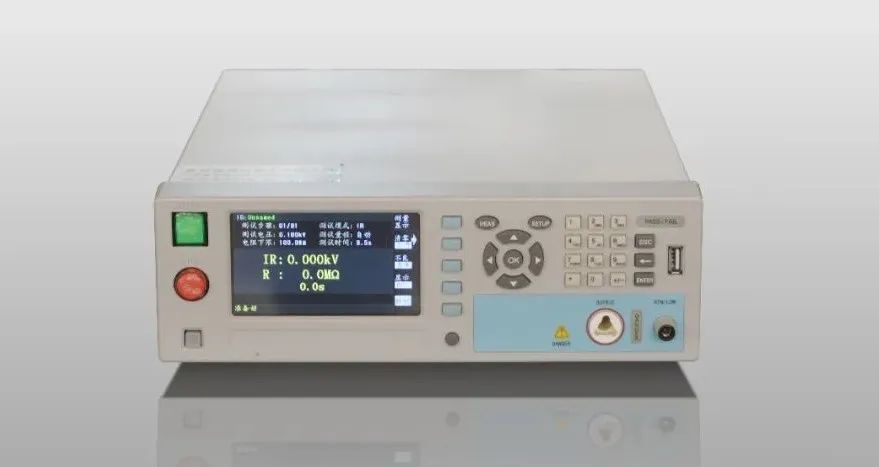

“Thunder Trial": AC Withstand Voltage Tester
AC voltage withstand tester manufactures artificial thunderstorms, 0.01mA level leakage monitoring to ensure insulation at extreme voltages.

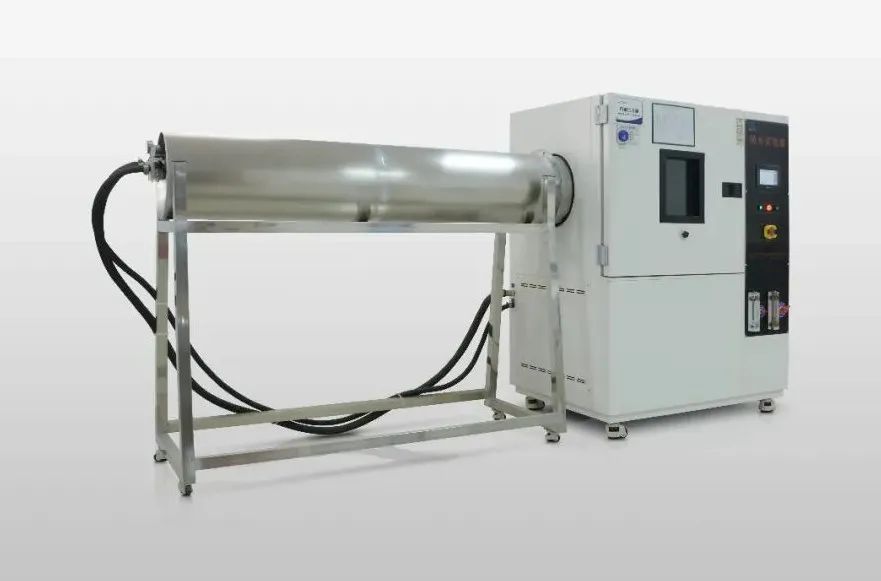

Environmental laboratory duo": waterproof test chamber IPX56-500 & flow resistance tester
IPX5 rainstorm laboratory: 8.3 m³/h high-pressure water cannon impact, to verify the underwater 1 meter protection ability.

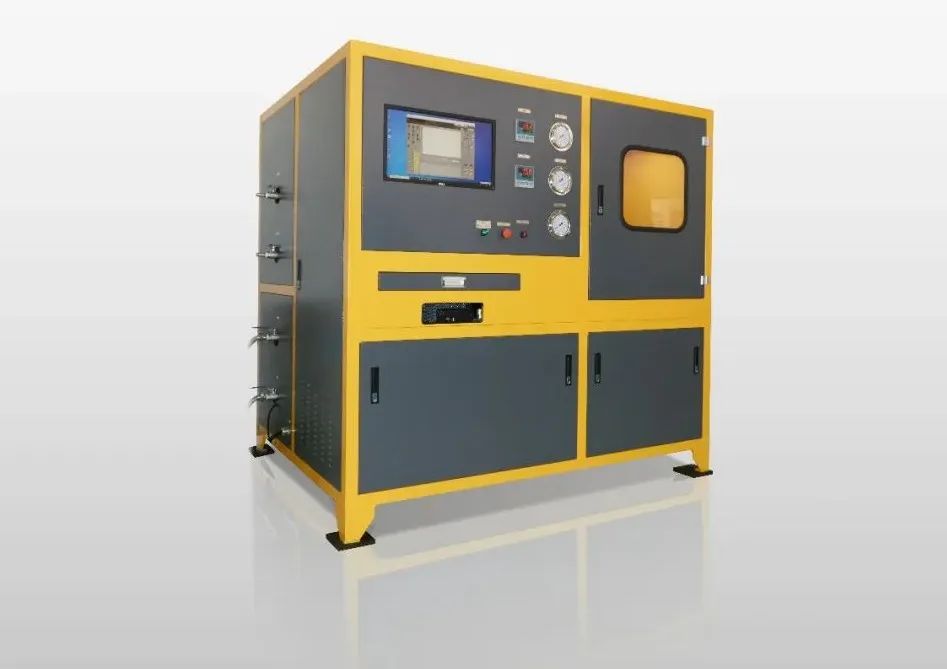

Micro-flow monitoring system: 0.5% grade flow control accuracy, drawing precision flow resistance curve.

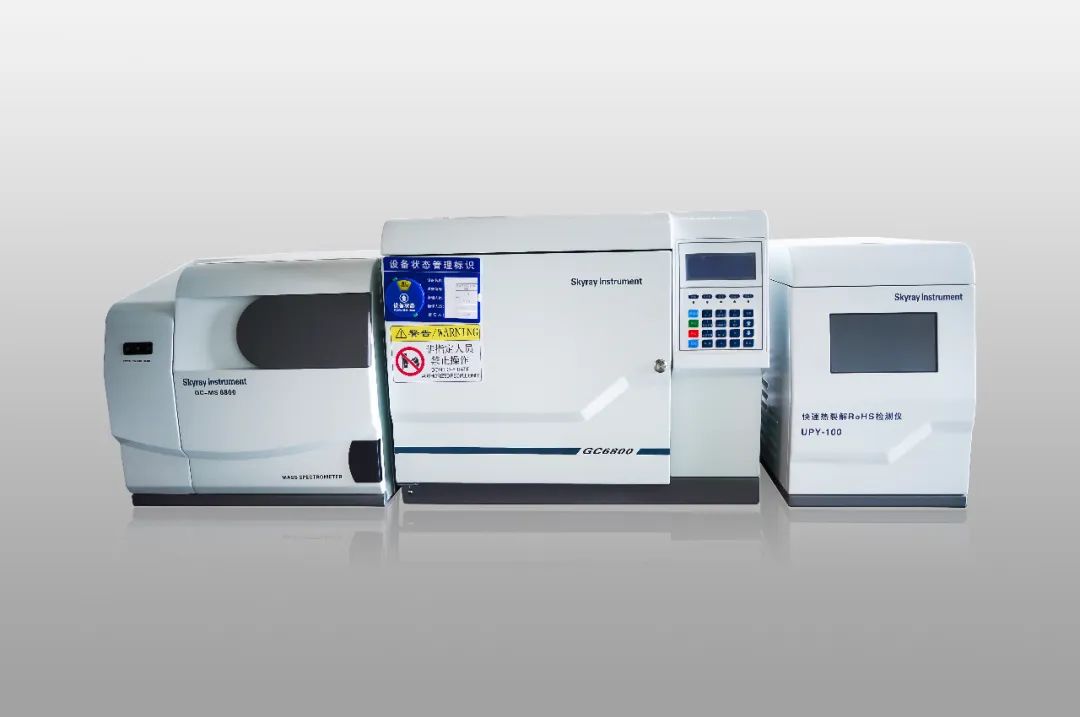

“Accurate and Straightforward": Rapid Thermal Cracking RoHS Tester
Intelligent temperature control module: 200-800℃ gradient cleavage, suitable for multiple types of polymer materials
Dual-channel mass spectrometry: simultaneous qualitative + quantitative analysis, avoiding the risk of false positives/negatives
Behind these cold figures is the passionate pursuit of quality in BIESIT Connectors:
√ 100% full inspection of each batch √ 28 international certifications √ 0 ppm major quality incidents From microns to amperes, from components to the environment, the lab defines connection standards with data.
