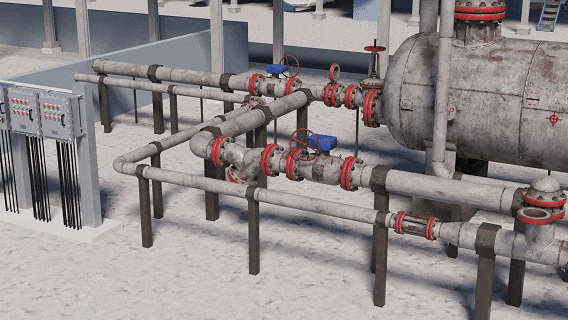

In petroleum, chemical, mining, pharmaceutical, and other flammable or explosive environments, electrical equipment may generate sparks or high temperatures that can trigger catastrophic accidents. As a critical explosion-proof device, an explosion-proof enclosure effectively contains explosion risks, ensuring personnel safety and stable production.
What Is an Explosion-Proof Enclosure?
An explosion-proof enclosure is a specially designed protective housing for electrical equipment used in hazardous environments.

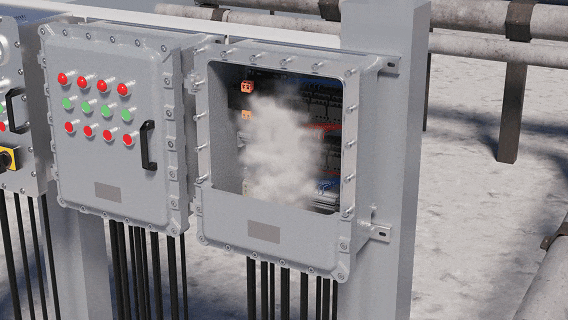

Its core function is to confine any explosion within the enclosure , preventing flames and hot gases from escaping and causing secondary explosions in the surrounding area.
Explosion-Proof Principle (Ex d Protection Method)
1.High-Strength Enclosure:

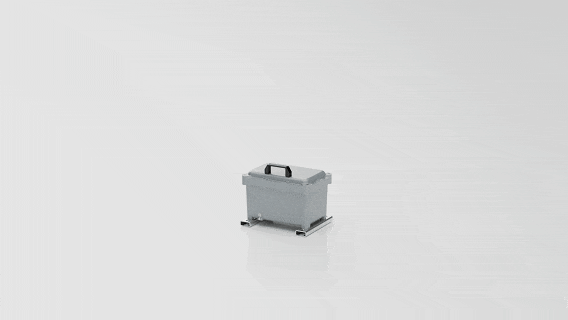

Constructed from cast aluminum, stainless steel, or carbon steel, the enclosure can withstand the pressure generated by an internal explosion.
2.Flameproof Joint Surface:
Precision-machined threaded or flanged joints ensure that any explosion flames are cooled and extinguished as they pass through narrow, elongated paths.

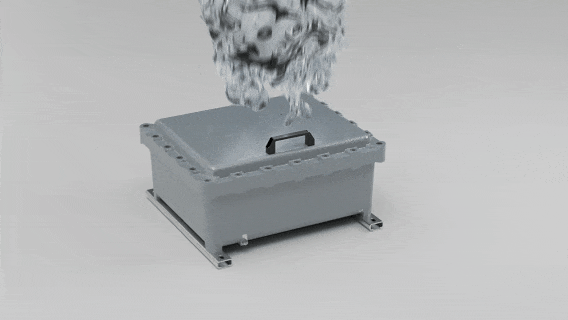

3.Sealed Protection:
Rated at IP66, the enclosure prevents dust and moisture from entering and affecting internal electrical components.
Key Advantages
BESTER explosion-proof control enclosures offer multiple core advantages:
-
1.Exceptional Performance & Durability
-

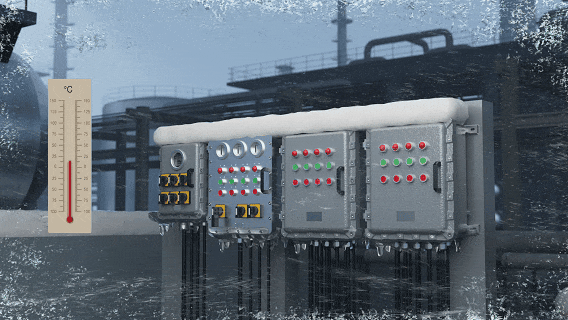

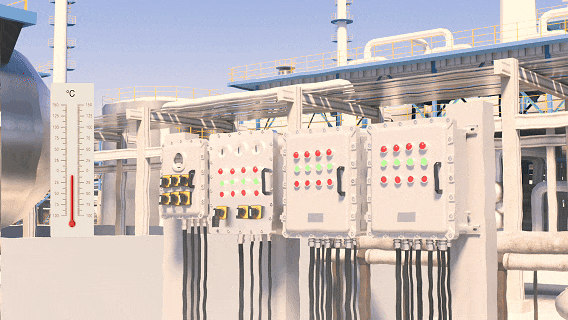

Operating temperature range: –55°C to +130°C
-
Tested temperature range: –60°C to +150°C
-
Suitable for IIB + H₂ hazardous environments
-
Enclosure wall thickness exceeds 20 mm, ensuring high structural strength
-
Hydrostatic pressure tested to withstand 2.4 MPa
-
IP66-rated dustproof and waterproof protection for harsh working conditions
-
2.Comprehensive International Certifications
Certified by IECEx, ATEX, CCC, and explosion-proof conformity certificates.
3.Rich Selection of Models

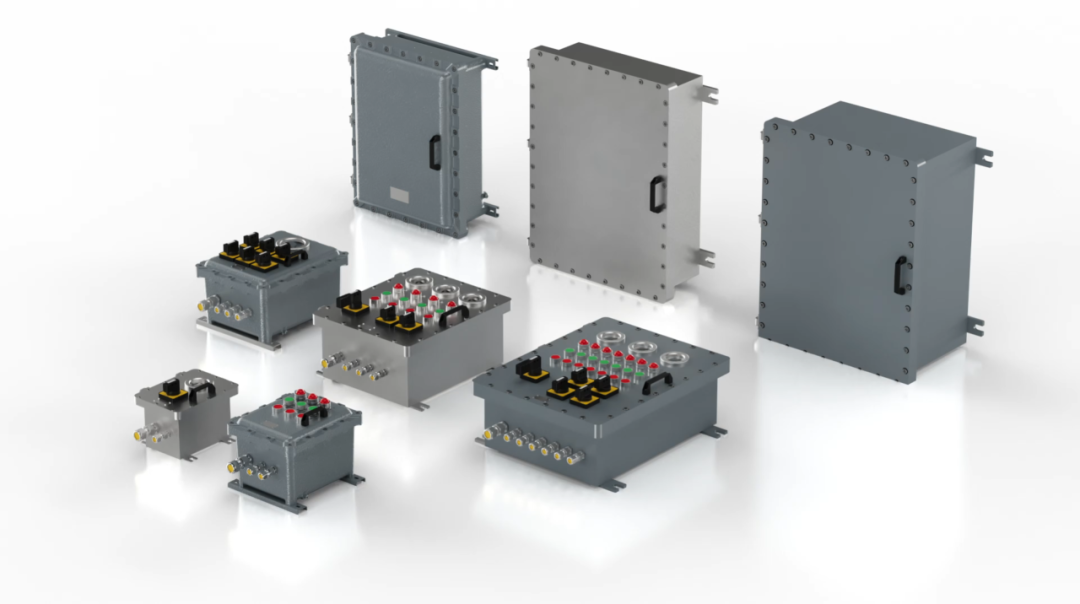

Available in nine sizes, ranging from 300 × 200 × 190 mm to 860 × 660 × 480 mm, meeting a wide range of installation and application needs.
