In the wave of industrial automation, smart manufacturing, and the Internet of Things (IoT), stable device interconnection is the foundation of efficient production.
Under the IEC 61076 standard, M8 and M12 circular connectors have become the “go-to solution” for connecting sensors, actuators, and industrial network devices thanks to their compact design, high protection ratings, and outstanding reliability. They are suitable for everything from miniature signal transmission to medium- and high-power connections.

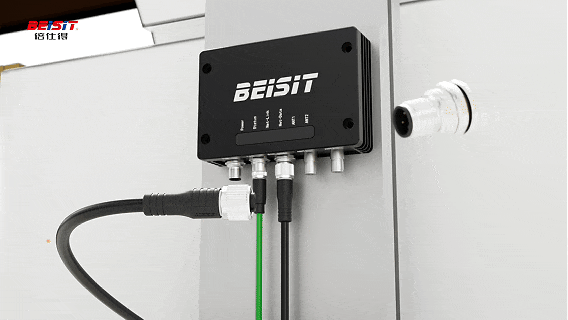

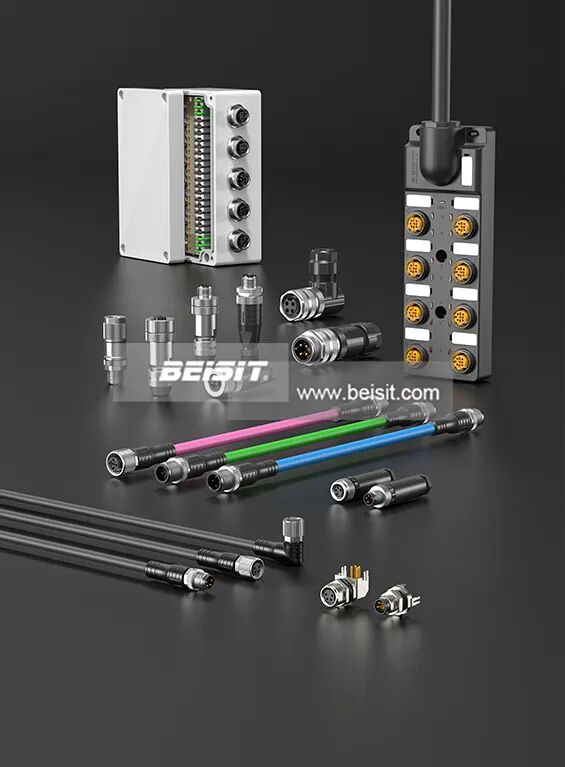

Today, let’s take a deep dive into the core advantages and selection tips for these two industrial connector solutions from Beisit.
Standard Positioning: M8 and M12 Serve Different Needs
IEC 61076 is the universal standard for industrial circular connectors, and the two connector types have clear positioning and application focus:
✅ M8 Connector (IEC 61076-2-104)
With an 8 mm outer diameter, M8 connectors are designed for compact, low-power, and space-constrained applications, offering the perfect balance between size and essential performance.
✅ M12 Connector (IEC 61076-2-101)
With a 12 mm outer diameter, M12 connectors are built for high reliability, medium- to high-power transmission, and high-speed data applications, delivering stronger protection and higher load capacity.
M8 Connectors: Compact & Efficient for Small-Space Signal Transmission
Core Features
- Size: M8×1.0 thread, available in 3–8 pins, approximately 40% smaller than M12 connectors, maximizing space savings.
- Electrical: Rated current ≤3A, rated voltage ≤50V AC, ideal for low-power signal transmission.
- Protection: IP67/IP68 rated for dustproof, splash-proof, short-term immersion, and vibration resistance.
- Environment: Operating temperature range from -40°C to +125°C, suitable for high-temperature, humid, dusty, and oily environments.
Typical Applications
✔ Miniature sensors: proximity switches, photoelectric sensors, temperature/humidity/pressure sensors.
✔ Compact equipment: small solenoid valves, micro motors, industrial flow meters and level meters.
✔ Space-limited installations: internal device interconnections, portable instruments, automation modules.
✔ Light-duty signal links: control cabinet I/O modules, low-speed fieldbus nodes.

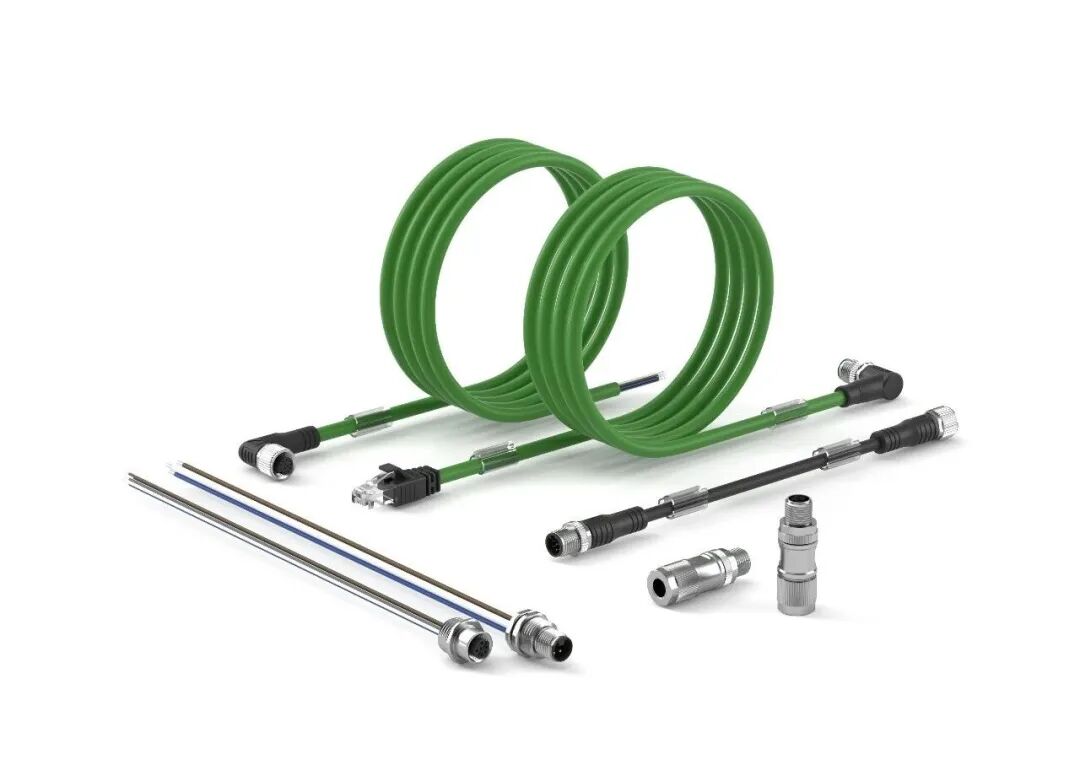

M12 Connectors: Versatile & Reliable for Harsh Industrial Environments
Core Features
- Size: M12×1.0 thread, available in 3–17 pins, supporting multi-pin hybrid transmission.
- Electrical: Standard models up to 4A/250V, high-power models up to 16A/630V, with X-coded versions supporting 10 Gbps high-speed Ethernet.
- Protection: IP67/IP68/IP69K, resistant to high-pressure washdowns, long-term immersion, and vibration.
- Environment: Operating temperature range from -40°C to +125°C, suitable for demanding industrial conditions.
Typical Applications
✔ Industrial network control: PLCs, frequency converters, servo drive interconnections, industrial Ethernet and fieldbus systems.
✔ Medium- and high-power equipment: servo motors and actuators, supporting simultaneous power and signal transmission.
✔ Harsh operating environments: automotive production lines, filling lines, mining machinery, outdoor EV charging stations, marine equipment.
✔ High-speed data transmission: industrial vision cameras, robotic joints, Gigabit Ethernet communication nodes.
M8 vs. M12: Key Differences at a Glance
| Comparison Item | M8 Connector | M12 Connector |
|---|---|---|
| Size | 8 mm, ultra-compact | 12 mm, standard industrial size |
| Rated Current | ≤3A | Standard 4A / High-power 16A |
| Protection Rating | IP67/IP68 | IP67/IP68/IP69K |
| Typical Load | Low-power signals, small/medium power | Medium/high power, high-speed data |
| Space Requirement | Ideal for tight spaces | Suitable for standard installation spaces |
Five Key Selection Tips to Avoid Mistakes
1. Evaluate Installation Space
- Limited space or miniaturized equipment: choose M8 for lightweight and compact installation.
- Multi-pin transmission or higher power demand: choose M12 for better performance and scalability.
2. Match Electrical Load
Selecting the correct current and voltage rating helps prevent overload and connector failure.
- Signal transmission: M8/M12 A-coded connectors offer excellent cost performance.
- Low power (<1 kW): M12 E/F/L/T coding.
- Medium to high power (1–7 kW): M12 K/M/S coding.
- High-speed data:
- M12 X-coded for 10 Gigabit Ethernet
- M8/M12 D-coded for 100 Mbps Ethernet
3. Understand Coding Types
Connector coding prevents mismatching and ensures precise functionality.
- A-code: Sensor and actuator signals
- B-code: Fieldbus systems such as PROFIBUS
- D-code: 100 Mbps Ethernet
- X-code: Gigabit / 10G Ethernet
- L-code: High-power supply
4. Consider Environmental Protection
Choose the appropriate protection rating according to the operating environment.
- IP67: Standard workshops with dust and water splashes
- IP68: Wet or washdown environments with temporary immersion
- IP69K: High-pressure cleaning, food & pharmaceutical industries (M12 only)
For high-reliability applications, metal housings and gold-plated contacts are recommended.
5. Focus on Mechanical Reliability
Industrial environments demand strong vibration resistance and durability.
- Vibration environments:
- Threaded locking design
- Vibration resistance ≥5g
- Shock resistance up to 50g
- Mating cycles:
- Standard industrial grade: ≥100 cycles
- High-reliability applications: ≥1000 cycles
- For field wiring, choose crimp or screw terminals.
- For mass deployment, pre-assembled cable assemblies are recommended.
Remember the Selection Logic
First determine the connector size based on available space →
Then calculate the electrical load requirements →
Finally select the appropriate protection level according to the environment.
By strictly following the IEC 61076 standard, you can ensure stable, reliable, and long-lasting device interconnection performance.
