With computing power soaring and energy storage capacity expanding, liquid cooling has become standard. However, as a core component of liquid cooling systems, the liquid cooling fluid connector can have disastrous consequences if the wrong one is selected: leakage and short circuits, excessive flow resistance, corrosion, and system downtime!
How to build a solid security barrier?
5 core dimensions to avoid pitfalls in product selection.
Check the media: Strictly control compatibility
When selecting a cooling medium that is not suitable for water-based, silicone, synthetic oil, or fluorinated fluid, it is essential to assess the long-term compatibility of the sealing material and conduct rigorous compatibility verification to eliminate potential problems such as swelling, corrosion, and aging.

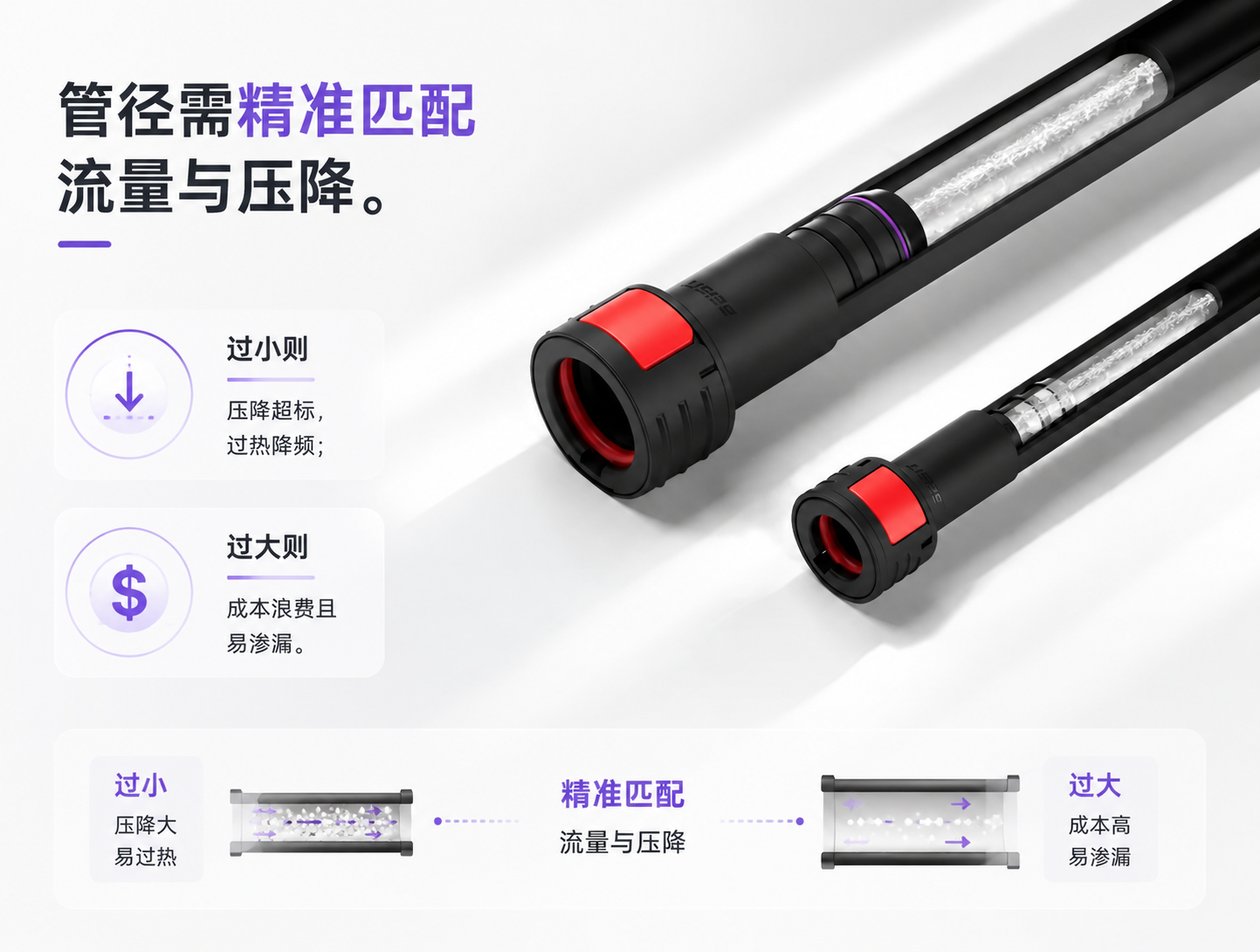

Analyze traffic: Reject "good enough"
The pipe diameter must be precisely matched to the flow rate and pressure drop. If it is too small, the pressure drop will exceed the standard, causing overheating and frequency reduction; if it is too large, it will result in wasted costs and easy leakage.

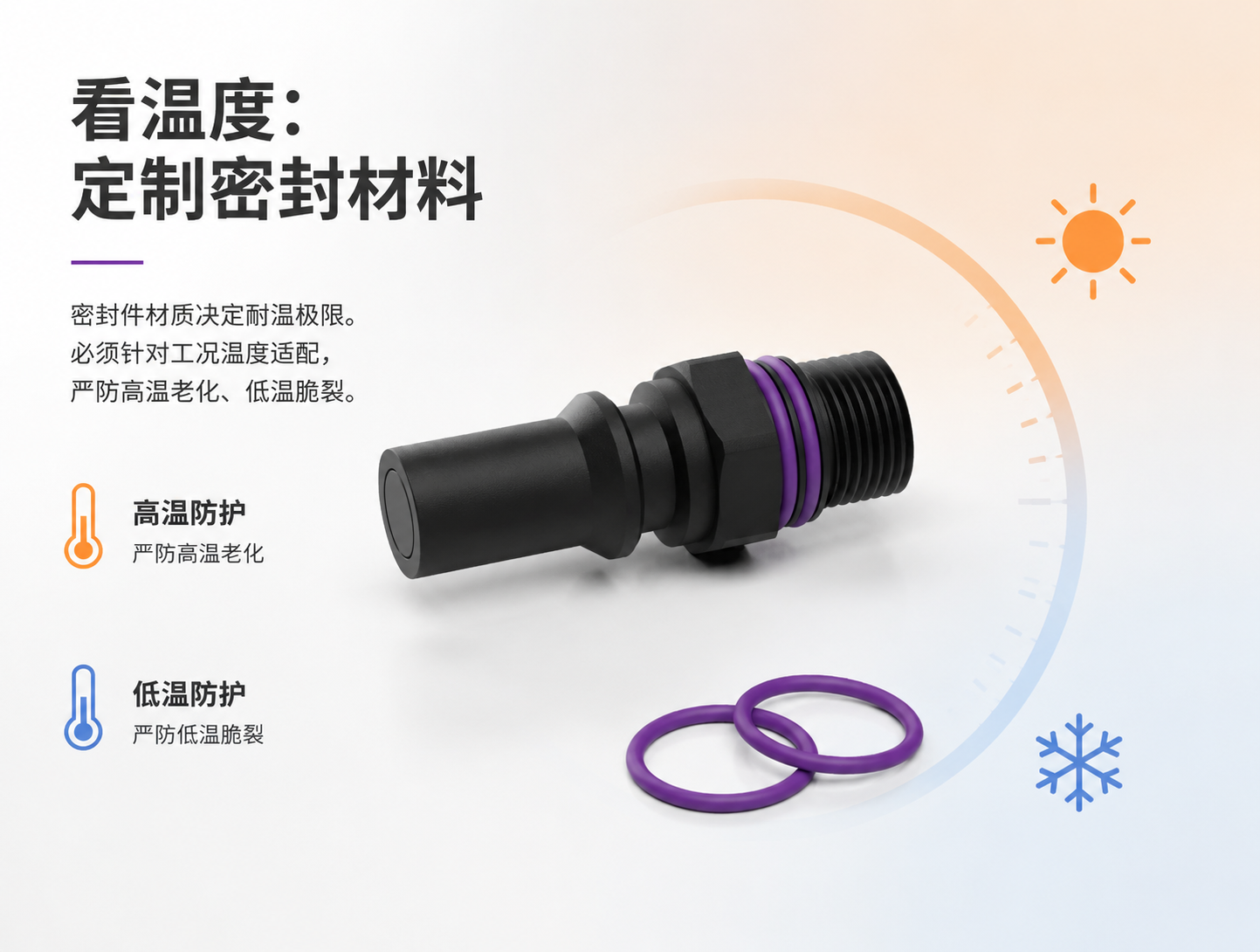

Temperature monitoring: Custom sealing materials
The material of the seal determines its temperature resistance limit. It must be adapted to the operating temperature to prevent high-temperature aging and low-temperature brittleness.

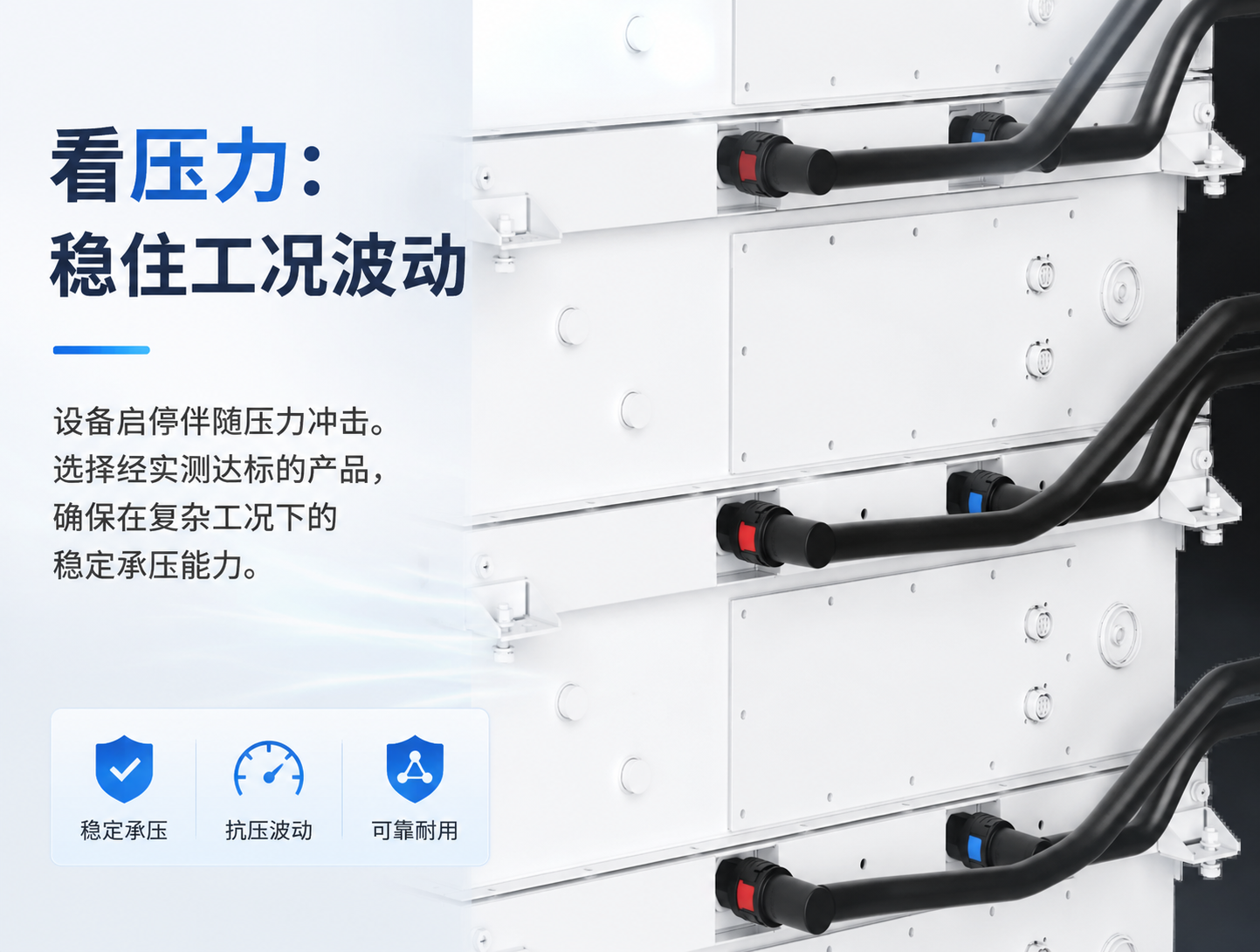

Monitor pressure: Stabilize operating conditions
Equipment start-up and shutdown are accompanied by pressure surges. Select products that have passed actual testing to ensure stable pressure resistance under complex operating conditions.

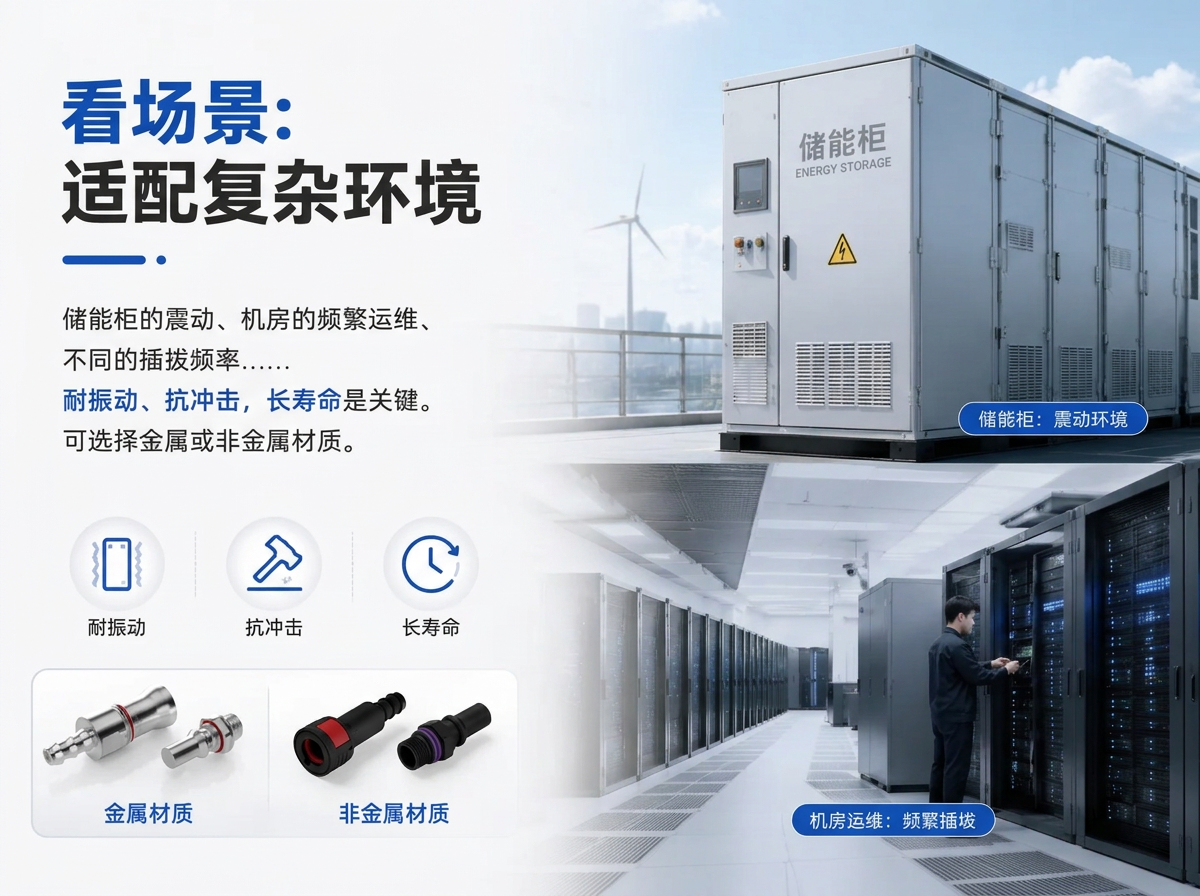

Consider the scenario: Adapt to complex environments
Vibration of the energy storage cabinet, frequent maintenance of the data center, and varying insertion and removal frequencies... Vibration resistance, shock resistance, and long lifespan are key. Metal or non-metal materials can be selected.

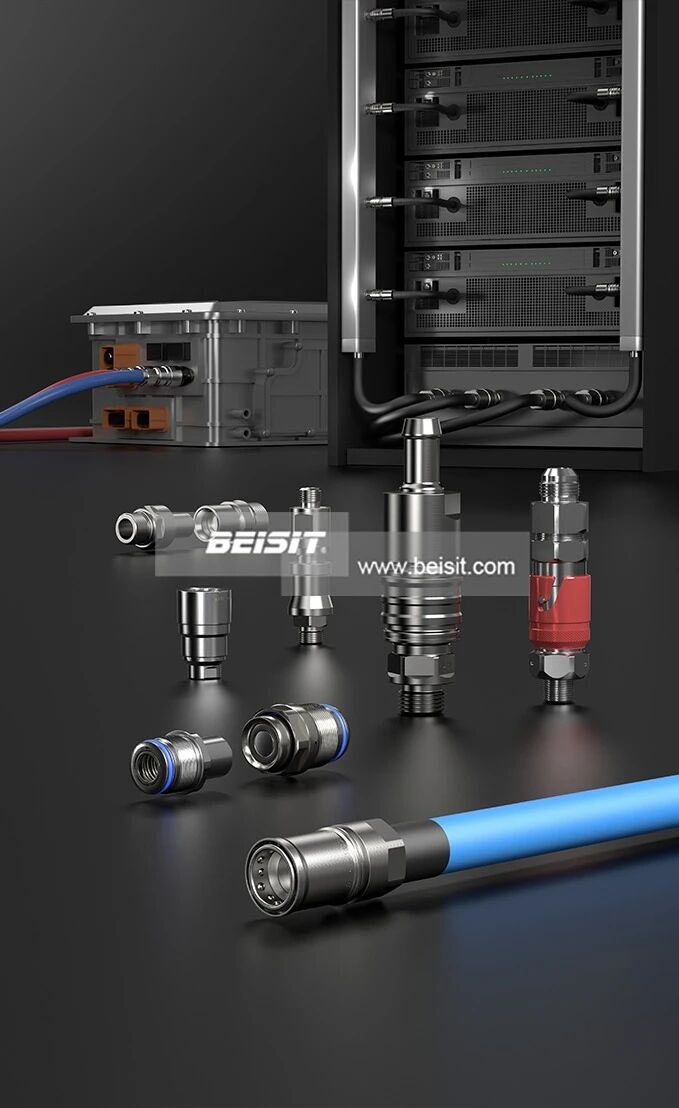

Bestco liquid-cooled fluid connectors: High reliability from domestic manufacturers, addressing key pain points.

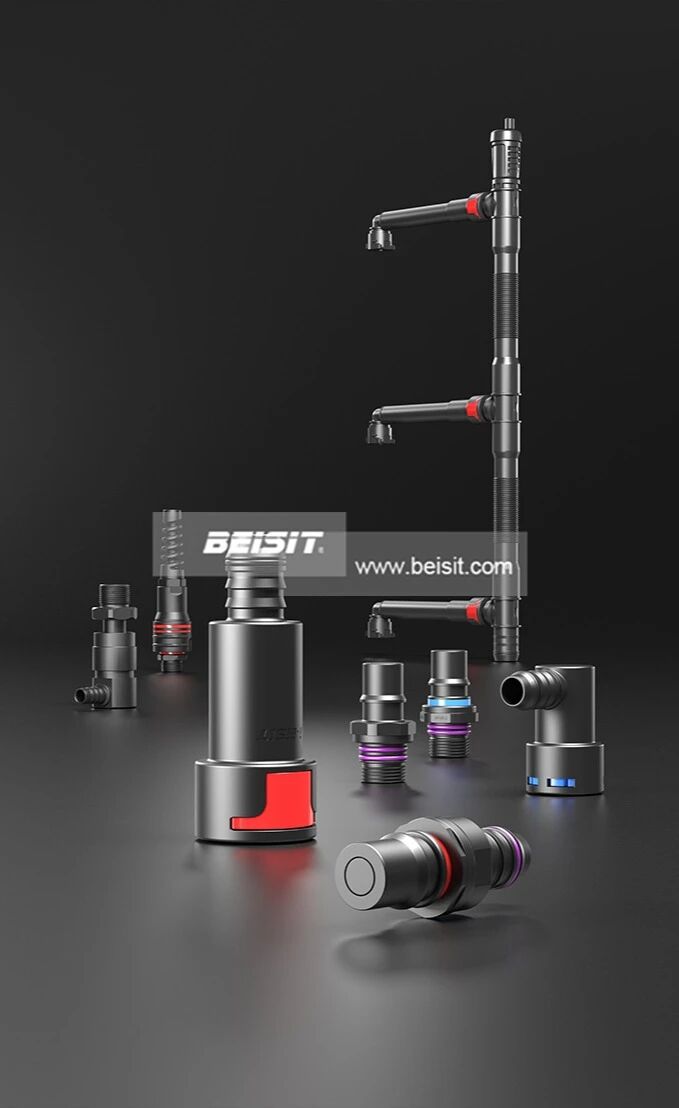

For scenarios such as energy storage PACK/PCS, supercharging, high-power power supplies, and data centers, Bestway offers a variety of products from PB-04 to PB-16, with a maximum flow rate of 7~60L/min, a bidirectional cutoff design, support for plugging and unplugging under pressure (0.3MPa), a single leakage of <0.1~0.3mL, and a plugging and unplugging life of >500 cycles.
Hardcore design
Safe and reliable
Integrated structure + optional PAT anti-accidental contact to prevent leakage; built-in waterproof ring to reduce scratches and aging; double-layer seal for leak-free connection/disconnection.
High performance
Supports plugging and unplugging under pressure (0.3MPa) without needing to stop the system to release pressure; low flow resistance design results in better system energy efficiency.

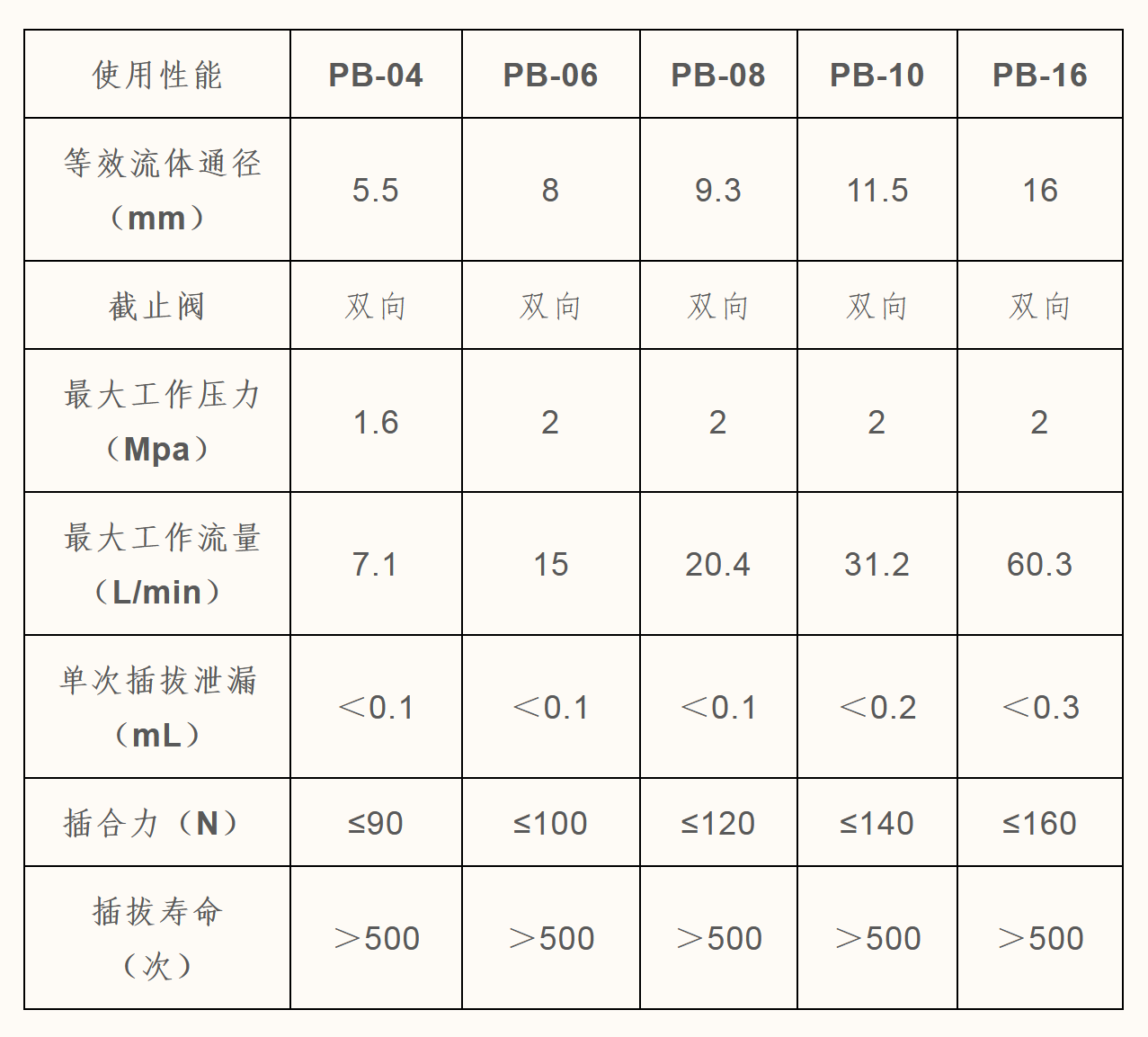

Quick Reference for Product Selection
Computing power iteration, energy storage expansion, and safety first. Bestech provides complete solutions for liquid-cooled fluid connectors and secondary/tertiary liquid-cooled piping, along with simulation analysis and testing verification services, offering end-to-end technical support for projects from selection to implementation. Bestech liquid-cooled fluid connectors possess completely independent intellectual property rights, using domestically developed high-reliability solutions to safeguard your equipment.
