Cable glands are used to secure cables where they enter electrical enclosures, control cabinets, junction boxes, and other equipment. A properly installed cable gland helps hold the cable in position while providing sealing and protection against moisture, dust, vibration, and mechanical stress.
However, installing a cable gland is not simply a matter of tightening the nut. The gland size, cable diameter, mounting hole, thread type, sealing method, and tightening torque all affect the final result.
In this guide, we explain how to install cable glands step by step, with practical points to check before, during, and after installation. The installation example also refers to the installation procedure for waterproof and breathable glands provided by BEISIT.
What Do You Need Before Installing a Cable Gland?
Before starting the installation, prepare the cable gland, cable, enclosure, and appropriate tools.
The exact tools depend on the gland design, but a typical installation may require:
- Cable gland
- Compatible cable
- Wrench or spanner
- Measuring tools
- Suitable mounting hole
- Torque wrench when a specified tightening torque is required
- Sealing accessories or locknuts where applicable
The first thing to check is whether the cable gland matches the cable and equipment.
A cable gland that is too large may not seal the cable properly. If the gland is too small, the cable may be difficult to insert and the sealing component may be damaged during installation.
The cable diameter should therefore be checked against the gland's specified cable range before installation.
Step 1: Choose the Right Cable Gland
Choosing the correct cable gland is the most important part of the installation process.
Cable glands are available in different materials, sizes, thread types, and designs. Common options include nylon cable glands, metal cable glands, waterproof cable glands, strain relief cable glands, and Ex cable glands.
The selection normally depends on several factors:
Cable Diameter
Check the outside diameter of the cable and compare it with the sealing range of the cable gland.
The gland should provide enough compression around the cable without excessive force.
Thread Type
The thread on the cable gland must match the mounting hole or the locknut used for installation.
Common thread standards include:
- Metric threads
- PG threads
- NPT threads
- G or PF threads
BEISIT's cable gland documentation includes dimensional information for Metric, PG, NPT, and British G(PF) thread specifications.
Do not assume that two glands with similar nominal sizes have interchangeable threads.
Material
The material should match the operating environment.

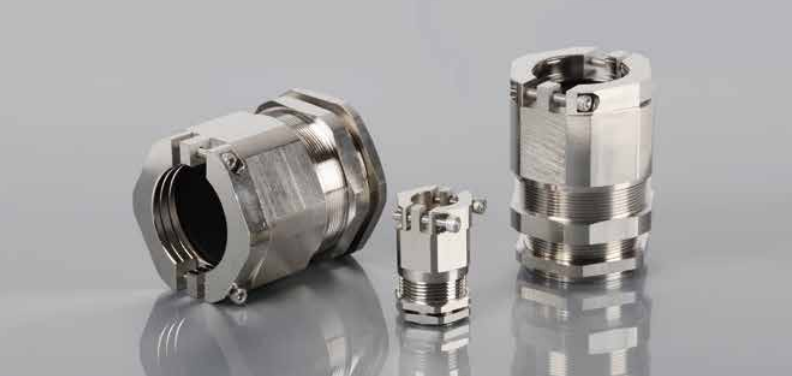

Nylon cable glands can be suitable for many general electrical applications, while metal cable glands may be selected when higher mechanical strength or specific environmental requirements are needed.
For hazardous areas, the cable gland must be selected according to the applicable equipment and protection requirements. An Ex cable gland should not be treated as a standard cable gland simply because the dimensions appear similar.
Environmental Requirements
Consider where the gland will be installed.
For outdoor equipment, electrical cabinets, photovoltaic systems, energy storage equipment, or other environments exposed to moisture and dust, sealing performance becomes particularly important.
For applications requiring pressure equalization or moisture management inside an enclosure, a waterproof and breathable gland may be more appropriate than a conventional sealed gland.
Step 2: Check the Mounting Hole and Thread
Before installing the gland, inspect the mounting hole.
The hole needs to match the recommended dimensions for the selected cable gland. If the hole is too large, the gland may not be properly supported. If it is too small, forcing the gland into position can damage the thread or enclosure.
For thin-panel installation, the recommended hole dimension should be taken from the product drawing rather than estimated during installation.
The mounting surface should also be reasonably clean and flat.
Remove metal chips, dust, burrs, or other material that could interfere with the gland body or sealing surface.
If the enclosure uses a threaded hole, check that the thread specification is compatible with the cable gland.
For example, an M20 gland should be installed in a suitable M20 threaded opening rather than simply relying on the outside diameter of the gland to determine compatibility.
Step 3: Install the Cable Gland Body
Once the mounting hole has been checked, install the main body of the cable gland.

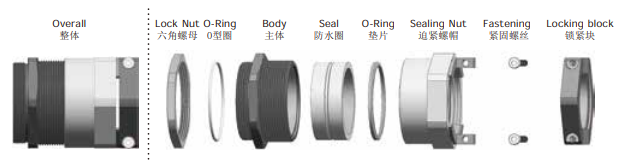

For a typical panel installation, first separate the locknut and other components as required by the gland design.
Position the body through the mounting hole and secure it from the appropriate side of the enclosure.
For the waterproof and breathable gland installation shown in BEISIT's installation guide, the locknut is positioned inside the cabinet while the body and other parts are positioned outside. The body is then inserted into the mounting hole and tightened clockwise with a wrench.

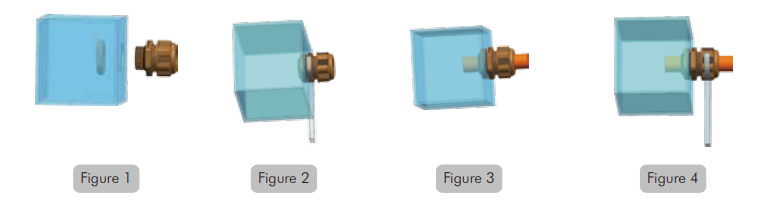

Figure 1. Positioning the locknut and cable gland body before installation.
Do not apply excessive force at this stage. The purpose is to secure the gland body against the enclosure while keeping the sealing components correctly positioned.
If the cable gland has a specific installation torque, follow the manufacturer's recommended value instead of tightening it as hard as possible.
Step 4: Tighten the Cable Gland Body
After positioning the gland body, use a suitable wrench to tighten it.
The gland body should sit correctly against the mounting surface without being tilted.
For the waterproof and breathable gland installation procedure documented by BEISIT, the body is tightened clockwise after the entry thread has been inserted into the mounting hole.
Figure 2. Tightening the cable gland body in the mounting hole.
A common mistake is to focus only on how tight the gland feels. Mechanical force should be controlled because excessive tightening can damage the gland, enclosure, thread, or sealing components.
BEISIT's product documentation also provides installation torque information for different cable gland sizes and notes that actual torque may need to be adjusted according to the application and agreed technical specifications.
Step 5: Insert the Cable Through the Gland
Once the gland body is secured, route the cable through the sealing nut and into the gland.
Before inserting the cable, check that the sealing components are correctly positioned.
The cable should pass through the center of the gland rather than entering at an excessive angle.
For the waterproof and breathable gland shown in BEISIT's installation guide, the cable is routed through the sealing nut and into the axis of the housing
Figure 3. Routing the cable through the cable gland.
Make sure the cable is not twisted or sharply bent directly next to the gland.
If the cable is under tension, it is also worth checking whether additional strain relief is required for the application.
A cable gland is designed to secure and protect the cable entry. It should not be used to compensate for poor cable routing or excessive mechanical loading.
Step 6: Tighten the Sealing Nut
After the cable has been positioned correctly, tighten the sealing nut.
This is the step that creates the required compression around the cable.
As the sealing nut is tightened, the internal sealing component compresses around the cable. The result should be a secure cable entry without damaging the cable jacket.
Figure 4. Tightening the sealing nut to secure the cable.
The sealing nut should be tightened evenly and according to the manufacturer's instructions.
Avoid the common practice of simply tightening the nut as much as possible. Excessive tightening can deform the sealing component and may damage the cable jacket.
Insufficient tightening, on the other hand, can leave the cable loose and reduce the expected sealing performance.
For applications where a specific torque is provided, a torque wrench can provide more consistent results.
Step 7: Installation in a Threaded Housing
Cable glands can also be installed directly into threaded holes in a housing or enclosure.
In this type of installation, the standard thread at the bottom of the cable gland body is aligned with the threaded hole.
For the waterproof and breathable gland installation procedure in BEISIT's documentation, the body is aligned with the threaded hole and tightened clockwise. The cable is then routed through the sealing nut and the sealing nut is tightened to secure the cable.

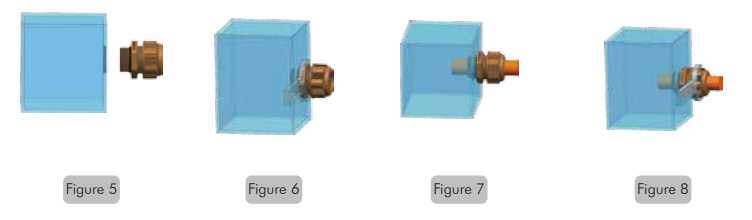

Figures 5–8. Example installation procedure for a waterproof and breathable cable gland in a threaded housing.
When installing into a threaded housing, make sure the thread is clean and properly aligned before tightening.
Cross-threading can damage both the gland and the enclosure. If the gland does not start smoothly, stop and check the thread rather than forcing it.
Step 8: Check the Finished Installation
The installation is not complete until the cable gland has been inspected.
Check the following points:
1. Is the Cable Secure?
Gently check whether the cable moves excessively inside the gland.
The cable should remain securely positioned without unnecessary movement.
2. Is the Sealing Nut Properly Tightened?
Check that the sealing nut is fully engaged and that the sealing component is compressed correctly.
3. Is the Gland Body Properly Seated?
The gland body should sit squarely against the mounting surface.
4. Is the Cable Jacket Damaged?
Inspect the cable around the gland.
There should be no obvious cuts, cracks, deformation, or other damage caused during installation.
5. Is the Thread Correct?
Check that the gland has been installed with the correct thread type and that the thread has not been damaged.
6. Is Additional Strain Relief Required?
For cables subject to vibration, movement, or mechanical loads, check whether an additional cable support or strain relief solution is needed.
A good cable gland installation should provide mechanical stability and an appropriate level of environmental protection for the application.
Cable Gland Installation Torque: How Tight Should It Be?
One of the most common questions about cable gland installation is how much tightening torque should be applied.
There is no single torque value that applies to every cable gland.
The required torque depends on factors such as:
- Cable gland material
- Gland size
- Thread type
- Sealing design
- Cable diameter
- Enclosure material
- Application conditions
- Static or dynamic installation
BEISIT's cable gland documentation provides torque tables for different metal and nylon cable gland sizes. It also notes that installation torque can be adjusted according to actual application conditions and the agreed technical specification.
For this reason, the manufacturer's product documentation should be used whenever a specific torque value is required.
The goal is not maximum tightening force. The goal is sufficient mechanical fixing and sealing without damaging the cable, gland, enclosure, or sealing element.
Common Cable Gland Installation Mistakes
Even a relatively simple cable gland installation can fail if a few basic details are overlooked.
Using the Wrong Cable Gland Size
A gland must match the actual cable diameter.
Using an oversized gland can result in insufficient sealing, while an undersized gland may make installation difficult or damage the cable jacket.
Using the Wrong Thread
Metric, PG, NPT, and G(PF) threads should not be mixed simply because their nominal dimensions appear similar.
Always confirm the thread specification before installation.
Over-Tightening the Sealing Nut
More force does not necessarily mean better sealing.
Excessive tightening can damage the sealing element or cable jacket.
Under-Tightening
If the sealing nut is not tightened sufficiently, the cable may move and the intended sealing performance may not be achieved.
Ignoring the Mounting Hole
A cable gland depends on the mounting hole or threaded opening being correctly sized.
An incorrectly prepared hole can compromise the mechanical installation even if the gland itself is correctly selected.
Pulling the Cable After Installation
The cable gland should not be exposed to unnecessary mechanical loading.
Where cables are heavy, moving, or exposed to vibration, appropriate cable support should be considered.
Installing Without Checking the Application
A standard cable gland is not automatically suitable for every environment.
Outdoor, wet, dusty, vibrating, high-temperature, industrial, and hazardous-area applications may require different gland designs.
How to Install Waterproof Cable Glands
Waterproof cable glands are commonly used where the cable entry needs protection against moisture and dust.
The basic installation process remains similar:
- Select the correct gland size.
- Check the cable diameter.
- Confirm the mounting hole and thread.
- Install and secure the gland body.
- Insert the cable through the sealing component.
- Tighten the sealing nut.
- Check the final sealing and cable retention.
However, waterproof performance depends on the complete installation rather than the gland alone.
The cable diameter must be within the specified sealing range, the mounting surface should be suitable, and the sealing components must be installed correctly.
BEISIT's official cable gland documentation includes a dedicated installation guide for waterproof and breathable glands, showing both panel installation and threaded-housing installation procedures.
How to Install Ex Cable Glands
Ex cable glands are used in applications where hazardous-area requirements apply.
Their installation should not be treated in exactly the same way as a standard cable gland.
Before installation, confirm:
- The cable gland certification
- The required protection type
- Cable construction
- Cable diameter
- Enclosure requirements
- Thread specification
- Installation instructions
- Required tightening torque
- Applicable hazardous-area requirements
The gland must be suitable for the complete equipment and application.
For this reason, always follow the manufacturer's installation instructions and the requirements applicable to the specific hazardous area.
BEISIT offers different Ex cable gland solutions, including Ex d and Ex e cable glands, as part of its cable gland product range.
How to Make Cable Gland Installation More Reliable
For production environments, installation consistency is just as important as the installation procedure itself.
A practical approach is to standardize the following items:
Use a Cable Gland Selection Table
Record the cable diameter, thread type, material, protection requirements, and suitable gland model before installation.
Use Defined Tightening Torque
Where the manufacturer provides a recommended torque, use a torque wrench during production installation.
Check Cable Diameter Before Assembly
Do not rely only on the cable model. Different cable constructions can have different outside diameters.
Inspect the Sealing Component
Check for deformation or damage before installation.
Keep the Installation Area Clean
Dust, metal chips, and other contamination can interfere with threads and sealing surfaces.
Create a Final Inspection Checklist
A simple checklist can include:
- Correct gland model
- Correct cable diameter
- Correct thread
- Correct mounting hole
- Gland body secured
- Sealing nut tightened
- Cable securely held
- No visible cable damage
- Final installation visually inspected
This is especially useful when many cable glands are installed on the same equipment or production line.
Where Are Cable Glands Used?
Cable glands are used in a wide range of electrical and industrial applications.
Typical applications include:
- Electrical control cabinets
- Industrial automation equipment
- Junction boxes
- Power distribution equipment
- Solar photovoltaic systems
- Energy storage systems
- Wind power equipment
- Railway equipment
- Industrial machinery
- New energy vehicles
- Outdoor electrical equipment
The correct cable gland depends on the equipment, cable, environment, and protection requirements.
For example, a cable gland used on outdoor electrical equipment may require different sealing characteristics from a gland installed inside a protected control cabinet.
Frequently Asked Questions About Cable Gland Installation
Can I install a cable gland without a torque wrench?
For some basic installations, a suitable wrench may be sufficient when the manufacturer's instructions do not specify a particular torque. However, when a defined installation torque is required, using a torque wrench provides better consistency and helps prevent over-tightening.
How do I know which cable gland size I need?
Measure the outside diameter of the cable and compare it with the cable diameter range specified for the gland. You should also check the required thread size and installation environment.
Can I use a metric cable gland in an NPT threaded hole?
No. Metric and NPT threads have different thread designs and should not be treated as interchangeable. Always select a gland with a thread that matches the equipment.
How tight should a cable gland be?
The gland should be tightened enough to provide secure mechanical fixing and the required sealing performance, but it should not be over-tightened. If the manufacturer provides a torque specification, follow it.
Why is my cable gland not sealing properly?
Possible causes include an incorrect gland size, cable diameter outside the specified range, damaged sealing components, an incorrectly sized mounting hole, incorrect installation, or insufficient tightening.
Are waterproof cable glands suitable for every outdoor application?
Not necessarily. The appropriate gland depends on the cable, enclosure, environmental conditions, required protection level, and application requirements. Always check the specifications of the selected product.
What is the difference between a standard cable gland and an Ex cable gland?
An Ex cable gland is designed and certified for specific hazardous-area applications and protection requirements. It should be selected and installed according to the applicable certification and manufacturer's instructions rather than treated as a standard cable gland.
Final Checklist for Cable Gland Installation
Before putting the equipment into service, check the complete installation:
Cable:
Correct diameter, undamaged jacket, properly routed.
Gland:
Correct model, material, size, and sealing range.
Thread:
Correct thread type and properly engaged.
Mounting:
Gland body correctly seated and secured.
Sealing:
Sealing component correctly positioned and compressed.
Torque:
Tightening torque follows the manufacturer's requirements where applicable.
Cable Retention:
Cable is securely held without excessive movement.
Environment:
The gland is suitable for the actual application.
A reliable cable gland installation starts with correct product selection and ends with a proper inspection. Paying attention to cable diameter, thread compatibility, mounting hole dimensions, sealing, and tightening torque can help prevent many common installation problems.
For projects requiring standard, nylon, metal, waterproof, or Ex cable glands, selecting the appropriate product for the actual cable and operating environment is the first step toward a reliable cable entry system.
Post time: Sep-04-2026
