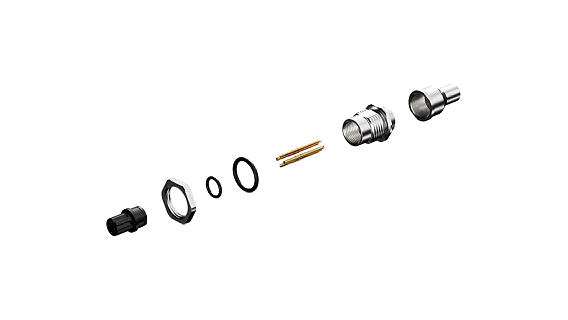

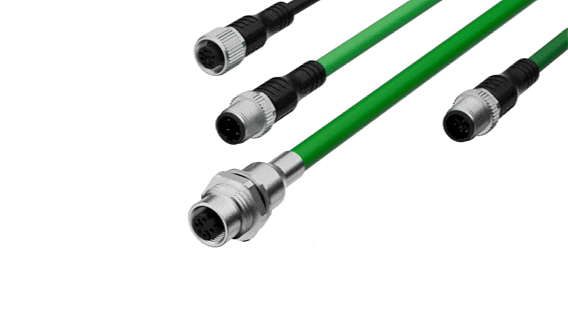

The M12 D-coded 4-pin connector is a widely used interface standard in industrial Ethernet, designed primarily for harsh environments to provide stable, reliable connections for 100 Mbps control networks; it offers three configuration options—overmolded, field-assemblable, and panel-mount—to suit various installation scenarios.

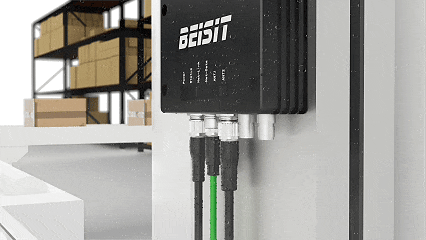

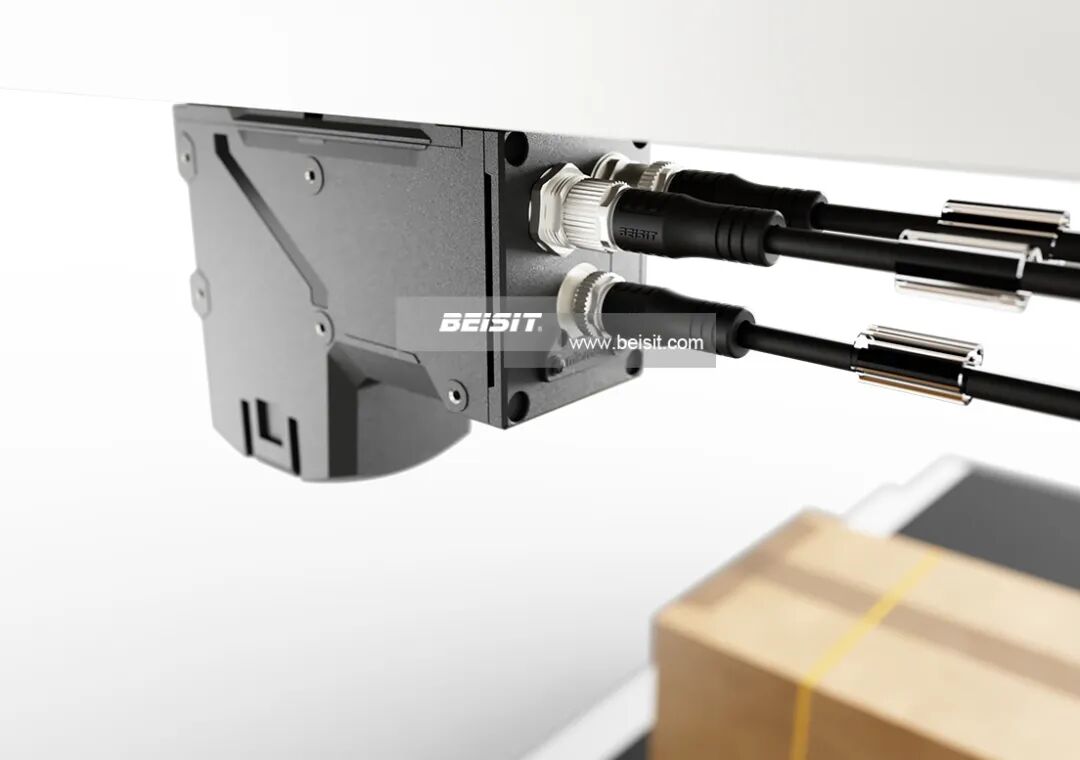

Typical Operating Environments
Effortlessly Handling Demanding Challenges
The reason the M12 D-coded connector has become the preferred choice for industrial environments lies in its exceptional environmental adaptability. It is designed to withstand harsh conditions that would cause standard commercial connectors to fail.
Robust Physical Protection
High protection rating; resistant to vibration and shock
High Protection Rating: When fully mated, the product achieves an IP67 rating, meaning it is completely dust-tight and remains functional after brief immersion in water.
Vibration and Shock Resistance: The 12mm metal threaded locking mechanism ensures a secure connection, effectively preventing loosening caused by vibration.
Wide Temperature Range and Interference Resistance
Adapts to more complex industrial environments
Wide operating temperature range: -40°C to +80°C.
Interference resistance: Metal housing versions offer an optional 360° fully shielded structure.
